ECS-1200 - Powerful, Scalable Distributed Control System

Coal Power Plant

A powerful, yet scalable system with superior reliability and flexibility, the ECS-1200 distributed control system is the result of more than five decades of innovation and manufacturing of control systems with hundreds of installations around the world.

With scalable architecture to match any size control requirement, each system provides complete, fully integrated network and system control solutions in any application or industrial setting.

ECS 06 from Doosan HFC

Encompassing an extensive selection of I/O cards for the simplest to the most complex operations, the ECS-1200 control system is fully redundant for confident operation during critical control conditions. Linked through a high-speed, open architecture network, the advanced microprocessor-based control system can perform all sequential and modulating control functions including plantwide data acquisition, monitoring, and display functions with superior integrity and maximum data throughput. With the open architecture network, connection of foreign devices and third-party software applications is easily achieved. Reduced integration time and hardware costs eliminate communications cables and dramatically improve configuration flexibility and maintenance facility.

Doosan HFC provides a full complement of system engineering and programming services. In addition to the advanced control and monitoring software packages, Doosan HFC applications engineers can uniquely configure each control system to significantly improve plant efficiency and profitability. The system can provide a diversity of field interfaces ranging from 4-20ma analog input modules to remote fieldbus devices. With modular design to allow easy system expansion plus the downward compatibility of features to legacy systems, the end user's investment is protected as the system evolves to meet the changing needs of the process.

The ECS-1200 distributed control system consists of five major components: Multifunction Controllers, Input/Output (I/O) modules, Applications Software, Industry Standard Communication Networks, and the Advanced Operator Interface Workstations. These components combine to deliver an exceptional process automation solution that not only optimizes plant performance and efficiency, but also is an extension of management's daily decision making tools.



Because scalability is necessary for both small and large systems, Doosan HFC offers a variety of controllers that can be intermixed throughout the system to optimize system configuration. With advanced, powerful digital and analog central algorithms, the multifunction controllers can be configured online or offline using a programming utility incorporating simple function blocks for control applications.

I/O Modules

The control system I/O modules are comprised of a complete family of digital and analog input and output boards. The I/O modules provide a host of advanced technological features offering a secure and dependable interface to field devices. The intelligent I/O supports a multitude of features such as built-in continuity monitoring, motive power, and status feedback for complete plant control and monitoring functions. Other significant features include separate power monitoring, independent manual reset switches, jumper-selectable I/O link addresses, and a self-configuring baud rate. Sophisticated diagnostics provide operators with a virtual extension of their senses into the heart of the operation.

In addition to the vast array of standard analog and digital I/O modules, specific functions such as thermocouple and sequence of events monitoring, HSIM's (High-Speed Interface Modules), and pulse input-output are available for specialized control and monitoring functions.

Control Room

Control Room

Three workstation configurations make up the components of the control room. Efficient plant operation is easily achieved through Microsoft® Windows® 10 based workstations: the operator workstation, the engineering workstation, and the historical archiving system. With the Windows® 10 environment, all workstations support interactive color displays, multi-window displays, and a standard library of symbols to allow complete customization. To provide a real-time interactive environment, the control room workstation displays are updated with current values at a rate of once per second. Workstations are connected to the system through industry-standard communication protocols, allowing access to any database point in the system. Each system can be connected to other computers and control systems on the network through the use of a standard Ethernet™ LAN and TCP/IP link.

Applications Software

Doosan HFC incorporates an innovative approach to software design and integration services that allow information obtained from local and remote I/O, data links to other devices, or output variables from controls strategies to be shared by other software applications and devices. Implementing changes to the system logic as well as customizing logic for a specific application is simple and does not require specific programming knowledge or software training. A built-in programmable feature also allows construction of the control system before operational logic is completed, minimizing the cost of field logic changes. These design tools along with the industry standard hardware and open architecture communications result in a high-speed, reliable, and fully integrated system that is capable of meeting any process control requirements.

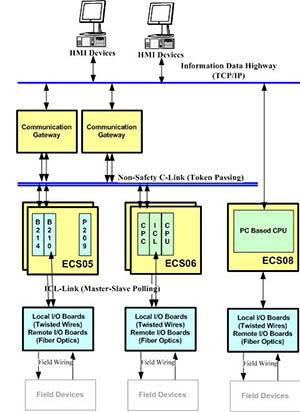

ECS Communication path

Communications Network

The Doosan HFC communications network is the most flexible network available today. The network accepts all systems and devices including PLC and CEMS, and can support commercial software in addition to Doosan HFC software. The redundant communication links between the controllers provide exceptional data integrity and stability. The redundant 10Mb/sec C-link allows the connection of multiple controller units and distributed control is supported through high-speed fiber optic links to form an extremely well designed and reliable communications network. For interface with our advanced CRT operator and engineering workstations, high-speed, open architecture technology provides a 100Mb/sec TCP/IP local area network (LAN). Communication gateways and hubs enable easy connection to multiple workstations as well as allow access to plant control operation from offsite locations.


HFC-6000 Rack from Doosan HFC
  • Open architecture permits communication with virtually any external host system or existing distributed control system (DCS)
  • Redundant architecture of critical components ensures that no single-point failure can prevent the system from assuming a fail-safe state
  • Modular design permits linking multiple controllers within a single system on a common local area network (LAN)
  • Input/output (I/O) modules include onboard microprocessors and signal conditioning hardware
  • Supports a sequence of events (SOE) logger utility that provides a maximum resolution of 100 microseconds over a 24-hour interval for selected events
  • Configurable control operation for fail-in-place and fail-safe control operation
  • Continuously checked redundant fiber optic communication channels prevent system degradation or data loss
